Both of the feed axis and lift axis are driven by AC servomotors. The feed speed could up to 200M/min max. with excellent stability and accuracy. The feed pitch can be tailor-made according to the center distance of two presses or die stages.

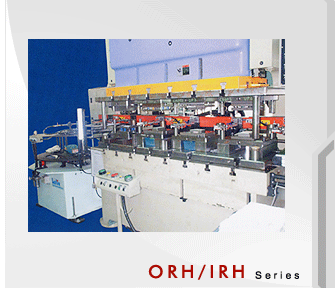

The main drive unit of ORH-series is installed beside the press frame. It can be applied to either a large or small press.
IRH series is applied to the press with a wide bolster. The main drive unit of IRH-series is mounted instead the press frame and minimizes the floor space needed for automation equipment. |
|
|
|
|
| |
|
|
| |
| |
 |
|
