For gear box & spindle maintain correct temperature, ensure long term accuravy & life.
Hardened slideways on X, Z-axis makes this machine ideal for heavy duty machining operations.
Fully enclosed electrical control box with special refrigerator provides dust free performance, and ensures temperature and dryness of controller.
200x200 square headstock reduces the inconvenient operations to the minimun.
A.T.C. Precise and rapid tool changing
Slide way surface are all through high frequency hardening & grinding.
The maximum cutting depth with the ram type tooling mechanism is 1200 mm.
Driving gears must through high frequency hardening & precision grinding.
Machine body have been heavy ribbed, so more stability & precision accuracy.
Both X and Z are driven by servo motor. A myriad of feed is available in both directions.

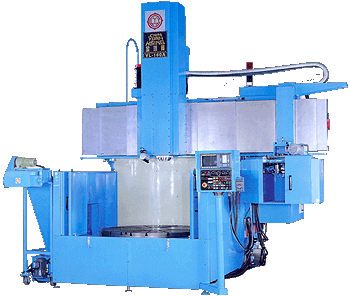

Vertical lathe bed with its rigid box construction contains the spindle unit & the gear box. |
|
|
|
|
| |
|
|
| |
| |
 |
|
