Chung Sing Machinery Co., Ltd.

Product :

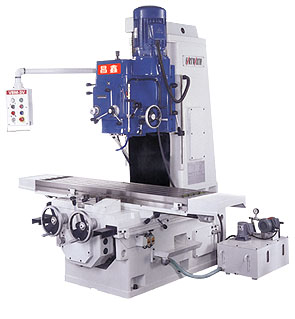

	Product Name:milling machine

Product Description:

CAPACITY
Table travel (Longitudinal) 1000mm (39-3/8")
Table travel (Cross) 380mm (14-15/16")
spindle head travel (Vertical) 500mm (19-11/16")
spindle nose to table top 100~600mm
(3-15/16"~23-5/8")
spindle center to column 380mm (14-15/16")
TABLE
Table working area 1700mm x 380mm
(67" x 14-15/16")
T slot (wide x no.x pitch) 18mm x 5 x 70mm
(0.709" x 5 x 2-3/4")
Table top to floor 800mm (31-1/2")
SPINDLE HEAD
Spindle nose ISO R297 No.50
Spindle speed 45~1500rpm (60Hz)
No. of spindle speed 12 steps
Feeds (Vertical spindle) 0.05~0.2mm/rev (0.002~0.008ipr)

Contact Information:

Company Name:	Chung Sing Machinery Co., Ltd.
Contact Person:	Ms. Chen
Address:	No. 55, Lane 506, Shen Shou Road, Shen Kang Hsiang, Taichung, Taiwan
E-Mail:
Telephone:	886-4-25252723
Mobile:	------------
Fax:	886-4-25270957
Web Site:	www.chungsing.com
