Chung Sing Machinery Co., Ltd.

Product :

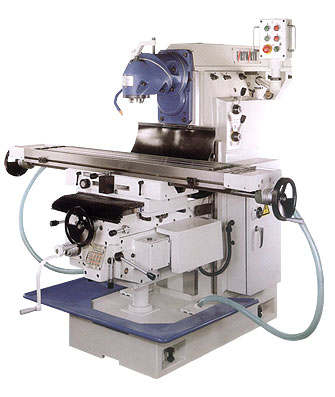

	Product Name:milling machine

Product Description:

TABLE
Working surface 1500 x 300mm
Travel longitudinal x cross x vertical 1050 x 320 x 470mm
T-slot (wide x no.x pitch) 16mm x 3 x 70mm
Feeds 12 steps Longitudinal x cross (60Hz) 13~621mm/min
Longitudinal x cross (50Hz) 11~517mm/min
Vertical (60Hz) 7~316mm/min
Vertical (50Hz) 6~263mm/min
Rapid traverse Longitudinal x cross (60Hz) 2960mm/min
Longitudinal x cross (50Hz) 2467mm/min
Vertical (60Hz) 1520mm/min
Vertical (50Hz) 1267mm/min
Swivel table (left & right) 45 deg
HURON HEAD
Spindle nose ISO R297 No.40
Distance from spindle end to table -10-+460mm
Distance from center of spindle to column 360mm
Swiveling angle of head (left & right) 360 deg

Contact Information:

Company Name:	Chung Sing Machinery Co., Ltd.
Contact Person:	Ms. Chen
Address:	No. 55, Lane 506, Shen Shou Road, Shen Kang Hsiang, Taichung, Taiwan
E-Mail:
Telephone:	886-4-25252723
Mobile:	------------
Fax:	886-4-25270957
Web Site:	www.chungsing.com
