Ching Hung Machinery & Electric Industrial Co., Ltd.

Product :

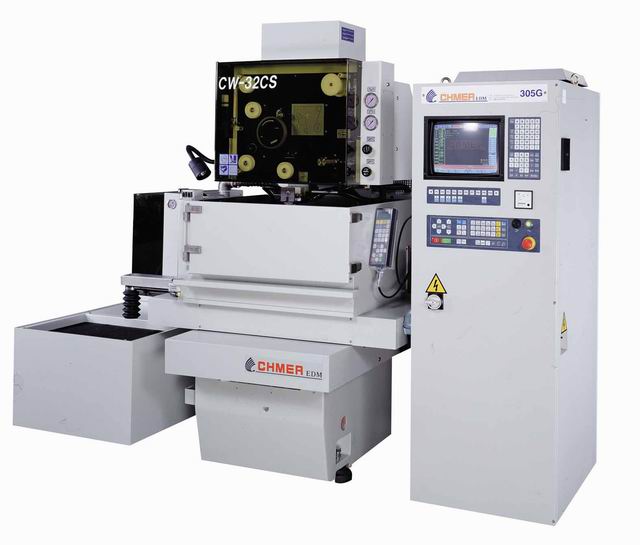

	Product Name:wire EDM

Product Description:

Model Unit CW-32CF/S
Axis travel (XxYxZ) mm 320x250x220
Auxiliary table travel (UxV) mm 60x60
Max. size of workpiece mm 800x560x220
Max. weigh of workpiece kg 300(F)/150(S)
XY feed rate mm Max. 800 mm/min
Axis drive system N/A AC servo motor
Max. wire feed rate mm 300/sec
Wire tension gf 400-2500
Taper angle mm ¡Ó20¢X/80mm(Wide angle taper nozzle)
Machine dimensions mm 1250x1500x2000
Machine Weight kg 2500

Contact Information:

Company Name:	Ching Hung Machinery & Electric Industrial Co., Ltd.
Contact Person:	Mr. Wang
Address:	No.28, Lane 229,Sec.1, Jhongshan Rd, Wurih Township, Taichung County 414, Taiwan
E-Mail:
Telephone:	886-4-23509188
Mobile:	------------
Fax:	886-4-23500977
Web Site:	www.chmer.com
