Ching Hung Machinery & Electric Industrial Co., Ltd.

Product :

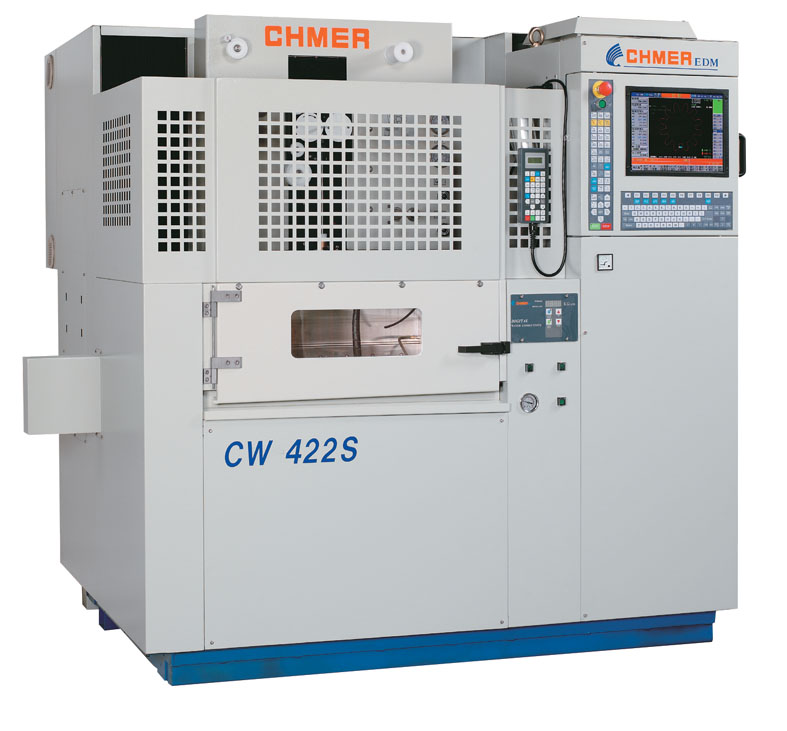

	Product Name:wire EDM

Product Description:

Model Unit CW-422F/S
Axis Travel (X¡ÑY¡ÑZ) mm/inch 400¡Ñ250¡Ñ220 / 15.7¡Ñ9.8¡Ñ8.6
Auxiliary Table Travel (U¡ÑV) mm/inch 60¡Ñ60 / 2.4¡Ñ2.4
Max. Size of Workpiece mm/inch 800¡Ñ560¡Ñ215 / 31.5¡Ñ22.0¡Ñ8.5
Max. Weight of Workpiece kg/lb 350/770(F) / 250/550(S)
XY Feed Rate - Max. 800 mm/min. / Max. 31.5"/.
Axis Drive System - AC servo motor
Wire Diameter Range - ¡í0.15~¡í0.3mm / ¡í0.006"~¡í0.012"
Max. Wire Feed Rate - 300mm/sec. / 11.8"/sec.
Wire Tension gf 400-2500
Taper Angle mm/inch ¡Ó14.5¢X/80mm / ¡Ó14.5¢X/3.15"
(Wide angle taper nozzle, DA+DB=15mm)
Machine Weight kg/lb 2050 / 4510

Contact Information:

Company Name:	Ching Hung Machinery & Electric Industrial Co., Ltd.
Contact Person:	Mr. Wang
Address:	No.28, Lane 229,Sec.1, Jhongshan Rd, Wurih Township, Taichung County 414, Taiwan
E-Mail:
Telephone:	886-4-23509188
Mobile:	------------
Fax:	886-4-23500977
Web Site:	www.chmer.com
