Leaderway Machinery Co., Ltd.

Product :

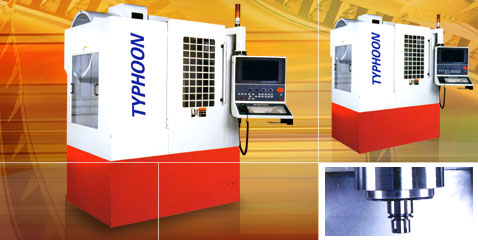

	Product Name:CNC vertical machining centers

Product Description:

Tiger 7 Industrial PC, Pentium lll, Windows98
Optimum algorithm for HIGH SPEED MACHINING, high speed DNC, multi-tasking,background editing, LASER digitizing ready.
Travel X axis mm(in) 508(20)
Y axis mm(in) 350(14)
Z axis mm(in) 400(16)
Clearance Spindle nose to table mm(in) 125-525(5-21)
Spindle center to column mm(in) 380(15)
Table Dimensions mm(in) 620x350(24x14)
Load kg(lbs) 300(660)
Guide Ways X,Y,Z axis X Linear way Y Linear way Z Linear way
Spindle Maximum power Kw(hp) 5(7)
Tool holder ISO 25
Maximum speed RPM 30000

Contact Information:

Company Name:	Leaderway Machinery Co., Ltd.
Contact Person:	Ms. Liu
Address:	No. 220, Sec,2, Yuan Huan N, Rd., Feng Yuan, Taichung 420, Taiwan.
E-Mail:
Telephone:	886-4-23369949
Mobile:	------------
Fax:	886-4-23378625
Web Site:	www.leaderwaycnc.com.tw
