Jesco Machinery Ltd.

Product :

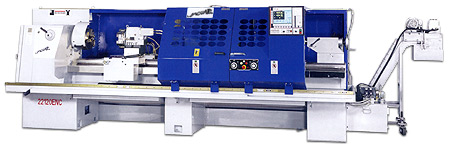

	Product Name:ENC lathes

Product Description:

The hardened and precision ground ballscrews for X & Z axes are mounted on high precision bearings to enable sensitive movement.
Both X & Z axes equipped with individual electronical handwheels on control panel for manual operation as conventional lathes.
The FAGOR 8040TC CNC COMPACT controller be selected as standard equipment, FAGOR 8055TC, or ANILAM 4200T controller may selected as optional.
Widely & semi-enclosed front chuck & chip guard equipped with interlock switches according to EC regulation provides safety and easy operation.
Full length rear splash guard and front moveable chip trolley provides chip and coolants safety and easy clean.
A designed openable door on rear splash guard provide for X-axis and home switches maintanence and adjustment easily.
The powerful inverter motor for main spindle are driven by YASKAWA VS-616 G5 vector control and multi-function all-digital type Inverter.
Both X & Z axes are equipped with selected controller whole package AC Servo motors with its own power supply and monodrives.
The EUCHNER automation sensor equipped on spindle speed changer to provide the exactly positions of speed range for spindle infinitely variable speed selection correctly.
Electronic positional stops in X & Z axes and tailstock to avoid any over travels.
The modular input /output (I/O) card evidence all control system performance for maintanence and trouble shooting easily.

Contact Information:

Company Name:	Jesco Machinery Ltd.
Contact Person:	Ms. Li
Address:	P.L. Box 14-9 Taiping, 411.Taichung, Taiwan.
E-Mail:
Telephone:	886-4-22702676
Mobile:	------------
Fax:	886-4-22706295
Web Site:	www.jesco.com.tw
