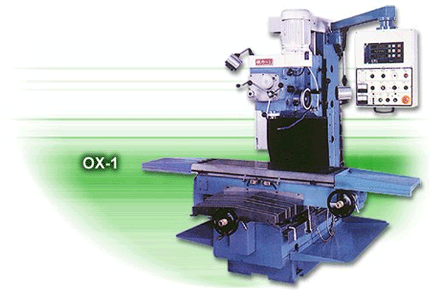

STRONG - STEADY - PRECISION through long, term still smooth accuracy
The capacity of heavy cut is 3 times powerful than tranditional turet type millin ghead.
Easy manual operate to move the head up & down.
0.02mm precision micro handle easy to match the requirement of drilling and heavy cutting.
16 speeds variable gear box head ensure precision position and speed.
Also easy to manual change the high/low speed.
Precision grinding and heat treatment Mo-Cr alloy gears to avoid high noise in 3000rpm.
Further coordinate with auto deep stop feature and 5 speeds atuo feed can be speed during working.
Auto lubricate on each bearing & gear to ensue the strady temperature after a long term high speed running.
Major feature of the machine body
Heavy-cutting designed bed type column base can bear heavy processing working and ensure long life with precision.
Hardened surface of square slideways coated with Turcite-B to reduce the friction and lasting the anti-wearing.
X, Y axes with double nut pre-loads ballscrews are applied for the table and saddle travels, Less the backlash and lasting the life.
X, Y axes are equipped with DC servo motors to increase machine feed capacity.
Torgue more powerful Rapid feeding is one time than the inverter motors.
Auto tirning lubrication pump convey oil by different ratio distributors to each slide ways. Also alarm sign if oil lacking.
Micro switch handles on X & Y axes travels to ensure the precision.
Option horizontal curting structure Powerful head can manual up and down operate 8 feeding speeds on gear box head when drilling. |
|
|
|
|
| |
|
|
| |
| |
 |
|
