Yeou Heuy Machine Co., Ltd.


  Product :

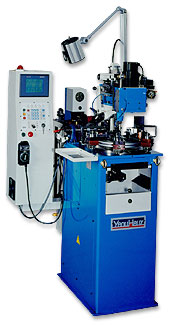

  Product Name:air coil former



  Product Description:
Wire diameter (Steel wire) 0.15~0.8mm
Max. length of front leg 50 mm
Max. length of rear leg 50 mm
Max. length of wire feed 100 mm
Spindle Axis Y Axis
Max. spindle vertical Stroke 40mm
Min. value 0.1 ¢X
Max. value 359.9 ¢X
Max. coils 999 Coil
Working direction Clockwise/Anticlockwise
Home action Unlimited
Cam axis X Axis
Min. value 0.1 ¢X
Max. value 359.9 ¢X
Max. production speed 120 RPM
Power 220V 3p 50/60Hz
Pneumatic air pressure 4-5 kg/cm2
Machine gross weight 350 kg
Machine dimension 1420x900x1800 mm
  Contact Information:
Company Name: Yeou Heuy Machine Co., Ltd.
Contact Person: Mr. Liu
Address: No. 83, Hsing Kung 1 Rd., Peitou Town, Changhua, Taiwan.
E-Mail:
Telephone: 886-4-8871086
Mobile: ------------
Fax: 886-4-8887086
Web Site: www.wire-machine.com.tw
