Mark Machines manufacturing Co., Ltd

Product :

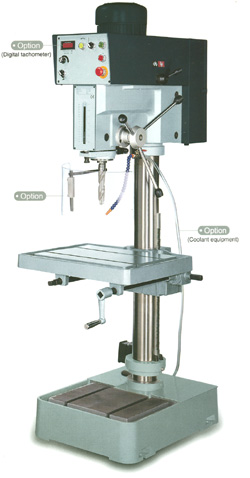

	Product Name:Inverter variable speed drilling machine - gear driving

Product Description:

TAPPING CAPACITY 19 mm 3/4"
THROAT 265 mm 10.4"
SPINDLE NOSE TAPER MT#3, MT#4 (OPTION)
SPINDLE TRAVEL 150 mm 6"
QUILL DIAMETER 75 mm 3"
COLUMN DIAMETER 115 mm 4-1/2"
SPINDLE NOSE TO TABLE 925 mm 36.4"
SPINDLE NOSE TO BASE 1225 mm 48"
TABLE SIZE (L x W) 560 x 470 mm 22" x 18.5"
TABLE SLOT 16 mm 5/8"
BASE SIZE (L x W) 685 x 485mm 27" x 19"
SPINDLE SPEED High : 245 ~ 2000 rpm
Low : 65 ~ 540 rpm
MOTOR 2 HP / 3 PH
COOLANT MOTOR 1/8 HP / 3 PH
MACHINE SIZE (L x W x H) 1085 x 578 x 2035mm
42.7" x 22.7" x 80"
NET WEIGHT / GROSS WEIGHT 340 kgs / 385 kgs
PACKING SIZE 990 x 635 x 2160 mm

Contact Information:

Company Name:	Mark Machines manufacturing Co., Ltd
Contact Person:	----------
Address:	P.O.Box 35-47,Taichung 406,Taiwan,R.O.C.
E-Mail:
Telephone:	886-4-2234-9241
Mobile:	------------
Fax:	886-4-2236-0634
Web Site:	www.secochen.com.tw
