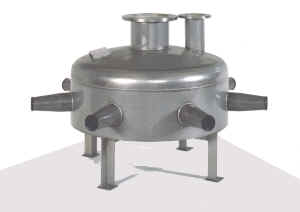

1. Jet aeration system:
Consisted of Jet Aerator. Re-circulation Pump and Blower, the re-circulation pump transferred the liquid through the liquid pipe, inner nozzle to the mixing chamber, homogenized with the air then discharge the let plume horizontally. For maintaining the high efficiency, the liquid and air inlet were separated and one air manifold is matched with one liquid manifold. (Fig. 1)
2. Jet aspirator
Consisted of Jet Aspirator and Re-circulation Pump, the function is same as the jet aerator but the air is not forced supplied. Different nozzles and high velocity of circulation liquid and suck the air into the air pipe will cause the vacuum from atmosphere.
3. Jet mixing system
Consisted of Jet Mixer and Re-circulation Pump, by double nozzle eductor technology, the liquid in the basin will be sucked into the mixer and discharged after well mixing in the mixing chamber (Fig. 2.) |
|
|
|
|
| |
|
|
| |
| |
 |
|
