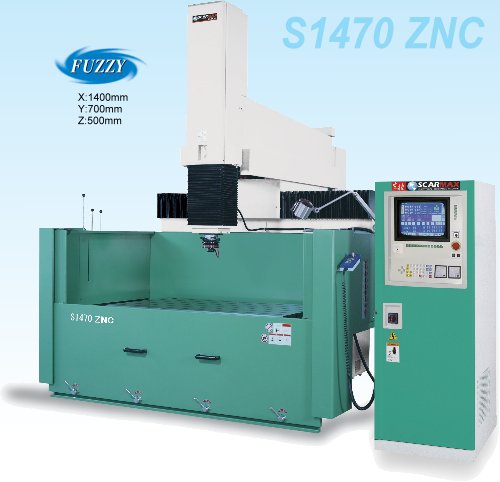

Table is hardended.
Constructed of high quality cast iron, quench treated.
X, Y-axis high precision ballscrews.
32 bits industrial grade computer.
Fast response MOSFET machining circuits.
Auto fire extinguisher, fire sensor, arcing sensor, dielectric level & temperature sensor are standard functions.
Interchangeable insert-board design.
Clearly identified numbers for maximum convenience of maintenance.
Momorized with 90 sets of teach-in parameters.
Choice of sparking or non-sparking for Z-axis mold alignment.
Low electrode wear, high efficiency, and extremely fine machining surface.
10 steps automatic parameters change for Z-axis.
3 axes digital readout with 0.005 resolution included.
Automatic home point reset on Z-axis.
Available on-link with orbit-cut system to enchance powerful functions.
Employs the latest single screen window conversational operations.
100 sets of work files can be edited.
14" VGA color monitor.
Intelligent arcing auto adjustment function: Intelligent arcing sensor & adjust parameters to ensure best performance.
Digital dual voltage (high/low voltage) currents being synchronously discharged to ensure faster metal removal rate, low electrode wear and uniform surface finish.
New "FUZZY" edition function: Just input: (1 )material of electrode & workpiece (2) machining depth. (3)Maximum current &(4)Minimum current, then "FUZZY" will auto set the machining parameters for each step form roughing to final finishing. |
|
|
|
|
| |
|
|
| |
| |
 |
|
