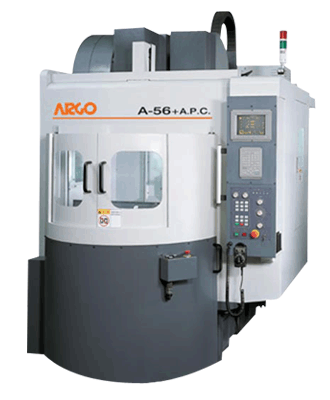

Spindle taper ISO#40, Spindle speeds 8000RPM (optional 12000RPM). Rigid tapping up to 6000RPM. Direct drive spindle motor system provides minimum power loss of transmission and stable running performance. 3-axes rapid traverse are 48m/min. to increase productivity. Tool loading capacity 16 tools (24 tool magazine optional). Auto. Pallet changer is driven by rotary CAM type mechanism which provides smooth and fast pallet changing. Pallet changing time is only approx. 6.5กำ2 sec. (A.P.C.) Double floating counter-balance weight and air-accumulator fully eliminate sinusoidal vibration problem on Z-axis while at high speed traverse and keep Z-axis steady in case of losing air resource suddenly. |
|
|
|
|
|
|
|
|
|
|
|
