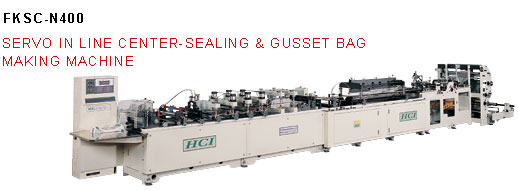

The machine employs reflective photocell sensor combined with servo system for accurate positioning. It eliminates repetitive error on sealing position, yet provides
high cutting accuracy. Sealing film raises automatically when machine is stopped (Patent No. 42360). Micro-computer accurately sets product length and allows for
length increase up to 1200 mm. The production speed is varied as desired from 0 to maximum speed. The EPC on unwinder provides accurate control for edge
smoothness. The machine employs power clutch for controlling material tension,which is adjustable to meet material thickness variation. This series in line center-
sealing gusset bag making machine gives you a competitive edge in bag production.
Mechanical speed : 150bags/min
Material width: 120-820mm
Material dia.: 450mm(Max.)
Bag width: 50-400mm
Bag length: 50-400mm |
|
|
|
|
| |
|
|
| |
| |
 |
|
