Producer Co., Ltd.

Product :

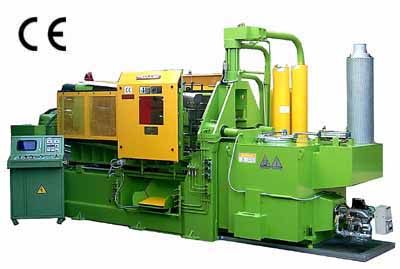

	Product Name:hot chamber magnesium die casting machines

Product Description:

Tie bar diameter mm 85x6
Die platen size(HxV) mm 700x670
Between tie bars(HxV) mm 445x415
Max. Die stroke mm 362
Die height mm 150~500
Nozzle break stroke mm 180
Max. Injection force ton 11.4
Max. Injection stroke mm 180
Standard plunger tip dia. mm 70
Total net injection amount(Mg) gr 588
Melting pot capacity(Mg) kg 250
Nozzle position(Center lower part) mm 0, -100
Ejection force ton 8.9
Ejection stroke mm 90
Casting cycles(Free) cycle/hour 780
3 Phase induction motor kw 25
Machine weight ton 12

Contact Information:

Company Name:	Producer Co., Ltd.
Contact Person:	Mr. Chen
Address:	----------
E-Mail:
Telephone:	886-6-2661486
Mobile:	------------
Fax:	886-6-2666407
Web Site:	www.producer-tw.com
