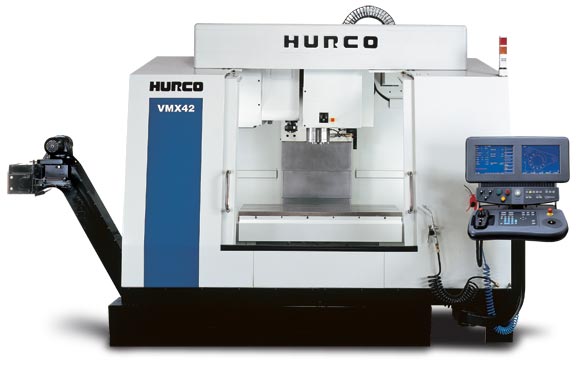

| Hurco Manufac Turing Ltd., Taiwan |
|
| |
| |
|
| |
| |
 |
|
High speed 10,000 RPM spindle
Powerful 24 hp, dual-winding, high-torque, spindle motor
Fast 1,181 ipm rapid traverse rates
Larger work cube of 42"x24"x24"
Large side doors for easy access
Exceptional cutting feed rates of up to 600 ipm
Robust control and software tools
Dual screen UltiMax control system for displaying active graphics
User-friendly, ergonomic control console
3,000 lbs table load
14,080 lbs solid frame design using FEA
Cartridge spindle design with coolant ring
24-station, automatic, swing-arm tool changer
Rigid tapping
Powerful wash-down system for lower splashguard
Standard height lift-up chip conveyor
Auto way lube separation system
Heavy duty linear rails in all three axis
Oversized, double nut, pre-tensioned ball screws
Automatic central lubrication system
Servo driven, no need for mechanical counter balance
UL, CSA, NFPA 79 independently certified, with CE certification optional . |
|
|
|
|
| |
|
|
| |
| |
 |
|
