| Minyu Machinery Co., Ltd. |
|
| |
| |
|
| |
| |
 |
|

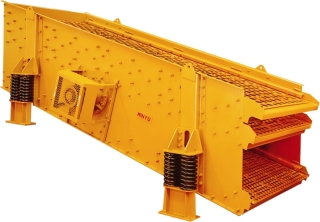

| Minyu MOP type inclined vibrating screens are built in rugged construction to be stationed with a 15-degree angle in operating fields. Their design is simple, and are especially useful and economical in screening applications for coarse crushed stones and minerals. The vibrating unit consists of an unbalanced eccentric shaft with added-on counterweights allowing for different stroke travels to generate a circle motion. Users can adjust the counterweights whenever necessary. Compared to horizontal screens, the inclined screens need less power thanks to the 15-degree slope and gravity effect. |
|
|
|
|
| |
|
|
| |
| |
 |
|
