| Kou Yi Iron Works Co., Ltd. |
|
| |
| |
|
| |
| |
 |
|

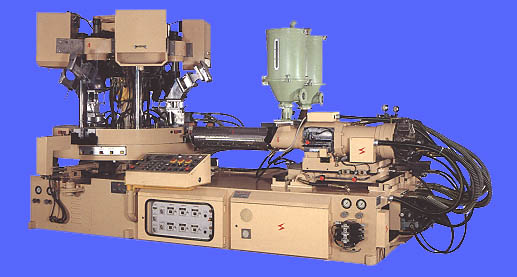

1. NSK-212(4stations or 6 stations) for single manual operation have high mobility and efficient suited for few order,sample,testing mould.
2.The unique design of separate produce have good cooling system to use materials of foaming and no foaming ,when using foaming material let production not change color,not change quantity expand best foaming effect.
3. It is suitable for P.V.C. foaming,T.P.R.,solid P.U. & N.B.R.
4. Photoelectric digit control system with 3 patents divides quantity of materials into four steps to control ejection quantity respectively and precisely.
5. The disc is computer operated to protect the system well especially to the moulds.
6. Movement of disc is hydraulic control with hydraulic breakes ,inabling a stability in the movement and accuracy in positioning.
7. Special hydraulic design with speedy ,low electric cost drive by 20HP motor.
8. Hydraulic closed mould system with powerful mould locking and would not create fiber trims and peermeation of colors.
9. Efficient cooling system have good effect of cooling and stable quantity.
10. Cooperate with Auto turn Last system,Auto clamping system easy to operation and high capacity. |
|
|
|
|
| |
|
|
| |
| |
 |
|
