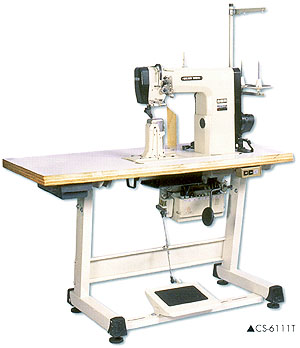

* CS-6111T ( WITHOUT PNEUMATIC
AUTOMATIC ROLLER PRESSER LIFTING )
* CS-6111FT ( WITH PNEUMATIC
AUTOMATIC ROLLER PRESSER LIFTING )
* CS-6111BT ( WITH PNEUMATIC
AUTOMATIC ROLLER PRESSER LIFTING
& AUTOMATIC BACKTACKING )
SPECIAL FEATURES
* Due to special unison feed, no wrinkle in light
material and fine stitch in heavy material.
* Accurate and uniform setting of stitches and
infinite stitch length variation.
* Maintenance-free ball and needle bearings and
link take - up lever.
* Applied full-revolution vertical rotary hook
with positive bobbin case opener.
* Equipped with easy-operating safety clutch
which would protect the rotating hook from
damage.
* Easy guiding of work when sewing on closed
shoe uppers, e.g. children's, because the post
is arranged to the right of the needle.
* With automatic undertrimming, could increase
the sewing efficiency.
1.Strong & durable moving knife and fixed
knife, could clearly cut even thick thread.
2.The moving and fixed knife could be easily
assembled, disassembled and regulated.
3.The newly improved undertrimming device
enable either thin thread or thick thread to
obtain the high quality undertrimming &
sewing.
4.When undertrimming, the action of thread
tensioner is precisely controlled by an
independent solenoid, so the undertrimming
result is more perfect.
* CS-6111FT & CS-6111BT : With pneumatic
automatic roller presser lifting, easily operated,
could increase the sewing efficiency.
* CS-6111BT : Equipped with pneumatic
automatic backtacking device, backtacking
only with gentle press on the backtacking
switch.
* For sewing functional and ornamental seams
preferably on concave portions of shoe
uppers, leather products,......etc.. |
|
|
|
|
| |
|
|
| |
| |
 |
|
