| Shin Shin Machinery Co., Ltd. |
|
| |
| |
|
| |
| |
 |
|

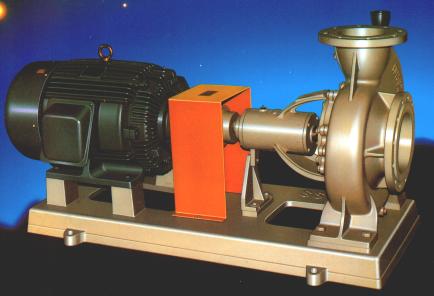

High efficiency¡G SVH type with higher efficiency¡Amake it possible to use one grade small motor¡Acan be achieved lower daily running cost and initial cost .
Wide range specification¡G 1" to 6"¡Athe maximum head reaches up to 130M¡A10m3/min in capacity . We have 31 kinds of SVH type¡Athey can be used in factories¡Bengineering.
Standard design¡G Meet DIN24255 standard .
Interchangeability¡G Three kinds of bearing frame only¡Alower spare parts inventory .
Lubrication¡G Use ZZ type bearings .
Mechanical seal Use the Mechanical seal which is used for water only and made in Japan .
Back pull-out For easy maintenance and disassemble .
Materials Casing¡GFC ¡AImpeller¡GBC ¡AShaft¡GSUS410
Motor Use the TECO or TATUNG .
Impeller Close impeller.
Use the NORMAX TYPE
Flange 10kg/cm2 is the standard flange type.
If any special request¡Aplease contact with us and use another pump type. |
|
|
|
|
| |
|
|
| |
| |
 |
|
