Quick Jet Machine Co., Ltd.

Product :

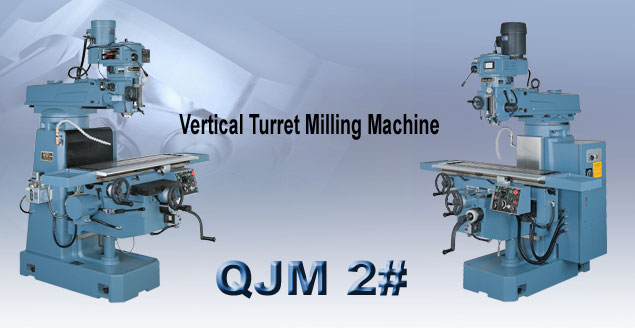

	Product Name:vertical turret milling machine

Product Description:

Front mounted longitudinal movement (X-axis) handwheel.
Front mounted water-proof control box is very easy to access.
C5 class double nut ballscrew on X,Y axis.
A750Wservo motor on X-axis, incorporating with magnetic clutch permits torque limit for safe driving.It provides power feed, ranging 0-1500mm/min (0-59IPM), and repid travel 3300mm/min.
Equipped with depth gauge (Optional:LED vernier caliper).
16 steps changed, ranging75-3600RPM for A2 milling head.
3HP AC motor drives S2 milling head, incorporating with 3.7kw programmble frequency inverter in control box and speed meter for micrometric speedadjustment from 60 to 3600RPM(the fastest speed up to 4050RPM). Fully protected, and it features trouble displayed.
SPINDLE-Spindle is made of chrome molybedenumsteel (SCM-21), one piece machined, tempering and carburizing heat treated, precision ground. Spindle runs on precision bearing that offers wide cutting range.
FORCED LUBRICATION SYSTEM FOR MILUNG HEAD-The gears and bearings in milling head are forced circulating lubrication that gives the excellent lubrication effect. Fitted with an oil level indicator, making assure the parts life.

Contact Information:

Company Name:	Quick Jet Machine Co., Ltd.
Contact Person:	Wang Jun Yu
Address:	720-1 SHERN CHOU RD., SHERN KANG SHIANG, TAICHUNG 429, TAIWAN.
E-Mail:
Telephone:	886-4-2561 9442
Mobile:	------------
Fax:	886-4-2561 9325
Web Site:	www.quickjet.com.tw
