GSK CNC Equipment CO., LTD.

Product :

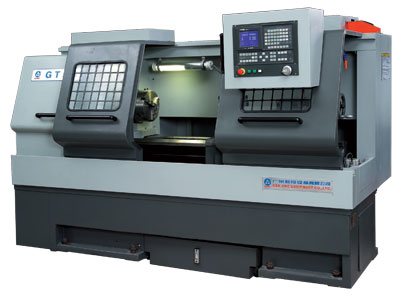

	Product Name:CNC Lathe-GT53i

Product Description:

GT53i
Specification
1. Max. Swing over bed (mm)530
2. Max. Swing over carrige (mm)280
3. Max. Turning Dia. (mm)370. 356. 346
4. Max. Turning Dia. (mm)860: 770. 720. 700; 1000: 930. 860. 840; 1500: 1440. 1370. 1350
5. Distance between centers (mm)860. 1000. 1500
6. Speed range /Manual two-steps inverter speed (r/min)L: 60~295~590; H: 175~880~1800
7. Spindle nose/Dia. Of spindle bore (mm) A2-8/Atype: 8; B type: 56
8. Spindle taper (MT) A type: ASA350; B type: MT6
9. Max. Travel of X. Z axis (mm)
X: 260 Z: The same as the max. Turing specification

10. Rapid reaverse rate of X. Z axis (m/min)X: 6 Z: 10
11. Spindle inverter motor (KW)Standard: Convert7. 5 Servo: 5. 5/7. 5
12. Servo motor of X. Z axis(AC) (KW)X: 1. 2 Z: 1. 8
13. Turret (mm)
Standader: 4-station electric-turret
Optional: 6-station electric

14. Shark width of cut-tool 4, 6 position toolpost: 25*25/32 8position toolpost: 20*20/25
15. Sleeve Standard: Manual Optional: Hydraulic Tailstock
16. Dia. Of sleeve/travel (mm)65/180
17. Sleeve taper (MT)No. 4
18. Form and standard of the chuck (mm)
Standard: Manual 250; Optional: Manual 315; Optioal: Hydraulic8 /10
19. Overall dimension(L*W) (mm)2780/2930/3440*1502*1750
20. Machine net weight (Kg)3100. 3400. 3700
21. CNC system GSK980TD

Contact Information:

Company Name:	GSK CNC Equipment CO., LTD.
Contact Person:	Huang Jian
Address:	No.7,1st Street, Luochong North Road,Luochongwei,Guangzhou,China 510165
E-Mail:
Telephone:	86-139-25042139
Mobile:	------------
Fax:	86-20-81796213
Web Site:	www.gsk.com.cn
