GSK CNC Equipment CO., LTD.

Product :

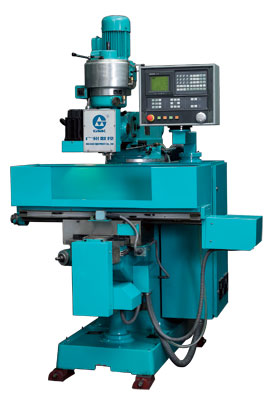

	Product Name:CNC Milling Machine-XJK6325

Product Description:

This is an economic CNC machine with good performance for milling and drilling. With low-cost under 10, 000.
With DNC function

SPINDLE
Taper of hole R8
Diameter of hole 15mm
Spindle sleeve (Z-axis) travel 100mm
Max. Distance between spindle and table 430mm
Spindle center to column surface 170-470mm
Rotation angle of milling head ZX-face +-90 degree
ZY-face +-45 degree
Speed range 65/4800r/min
MAX. TRAVEL
X-axis(Controlled by computer) 600mm
Y-axis(Controlled by computer) 220mm
Z-axis(Controlled by computer) 400mm
Z-axis(Controlled by manual ) 100mm
TABLE
T-groove Number 3
Width 14mm
Distance 65mm
Weight of workpiece 150kg
BEAM
Travel 260mm
Rotation angle +-30 degree
POWER OF MOTOR
Spindle 1. 3-1. 7kw
Cooling pump 0. 04kw
OTHERS
Overall dimension(LxWxH) 1700x1510x2060mm
Machine net weight 1200kg
Area of table 250x1120min
CONTROLLER/DRIVER GSK928MA
