GSK CNC Equipment CO., LTD.


  Product :

  Product Name:CNC Milling Machine-XK7145A



  Product Description:
We can provide many kinds of CNC MILLING MACHINE and MACHINING CENTER with different controllers(such as GSK, Funuc, Siemens...), leave me a message of your detail requirement, I will quote to you as soon as possible.

Here is one of the model

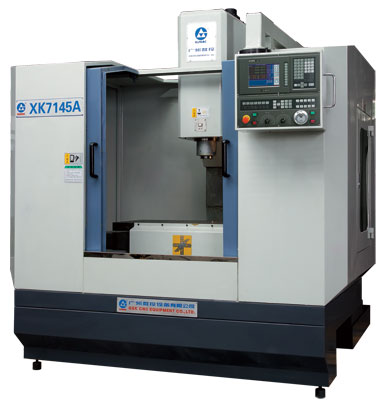

XK7145A
Specification
1. Max. Travel of X axis (mm)600
2. Max. Travel of Y axis (mm)450
3. Max. Travel of Z axis (mm)460
4. Spindle nose to worktable (mm)185-645
5. Distance from spindle contre to colume (mm)460
6. Rapid speed of X. Y axis (mm/min)10000
7. Rapid speed of Z axis (mm/min)6000
8. Feed speed (mm/min)1--4000
9. Worktable size (mm)700x450
10. Max. Table load (Kg)400
11. Amount / width / speace of T-slot (mm)3/18/125
12. Max. Spindle speed (rpm)6000
13. Main motor power (Kw)5. 5
14. Spindle nose taper BT40
15. Positioning accuracy (mm)0. 025
16. Repeatability accuracy (mm)0. 012
17. Overall dimension(L*W*H) (mm)2150*1950*2320
18. Machine net weight (Kg)3200
19. CNC system GSK928MA
  Contact Information:
Company Name: GSK CNC Equipment CO., LTD.
Contact Person: Huang Jian
Address: No.7,1st Street, Luochong North Road,Luochongwei,Guangzhou,China 510165
E-Mail:
Telephone: 86-139-25042139
Mobile: ------------
Fax: 86-20-81796213
Web Site: www.gsk.com.cn
