GSK CNC Equipment CO., LTD.


  Product :

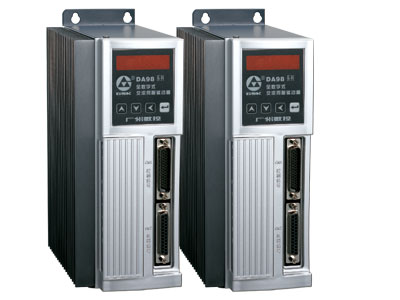

  Product Name:Servo Driver-DA98



  Product Description:
With DSP and CPLD, high integration and reliability;
Optimized PID control arithmetic to control motor, increased the veracity and celerity of position and speed;
Mitsubishi IPM, perfect protection, alarm code display, alarm signal output;
Total digital control, user setup of parameters and different display content.
SPECIFICATION
Input power
Single phase or 3 phases AC220V-15 ~ +10% 50/60Hz
3 phases AC220V-15 ~ +10% 50/60Hz
Working condition
Temperature: working: 0 ~ 55degreeC storage: -20degreeC ~ 80degreeC
Humidity: less then 90% (no dew)
Vibration: less then 0.5G ( 4.9m /S2) , 10 ~ 60Hz(no continuous run)
Control mode: 1 position control 2 speed control 3 speed dry run 4 JOG run
Rebirth brake :Inner
Control characters
Speed frequency response: not less then 200Hz
Speed fluctuation: <+-0.03(load: 0 ~ 100%) ; <+-0.02(power:-15 ~ +10%)(value corresponding to rated speed)
Speed ratio: 1:5000
Pulse frequency: ¡Ü500kHz
Monitoring function
Rev, current position, dictate pulse accumulate, position warp, motor torque, motor current, linear speed, rotor absolute position, dictate pulse frequency, running state, I/O terminal signal,etc.
Protection function
Overspeed, mainpower overvoltage/undervoltage, overcurrent, overload, brake abnormity, encoder singularity, control power unconventionality, position warp, etc
Display, operation 6bits LEDLED , 4 buttons
Suitable load inertia: Less then 5 times of the motor's inertia
Weight : 2.8Kg
  Contact Information:
Company Name: GSK CNC Equipment CO., LTD.
Contact Person: Huang Jian
Address: No.7,1st Street, Luochong North Road,Luochongwei,Guangzhou,China 510165
E-Mail:
Telephone: 86-139-25042139
Mobile: ------------
Fax: 86-20-81796213
Web Site: www.gsk.com.cn
