Fair Friend Enterprise Co., Ltd.


  Product :

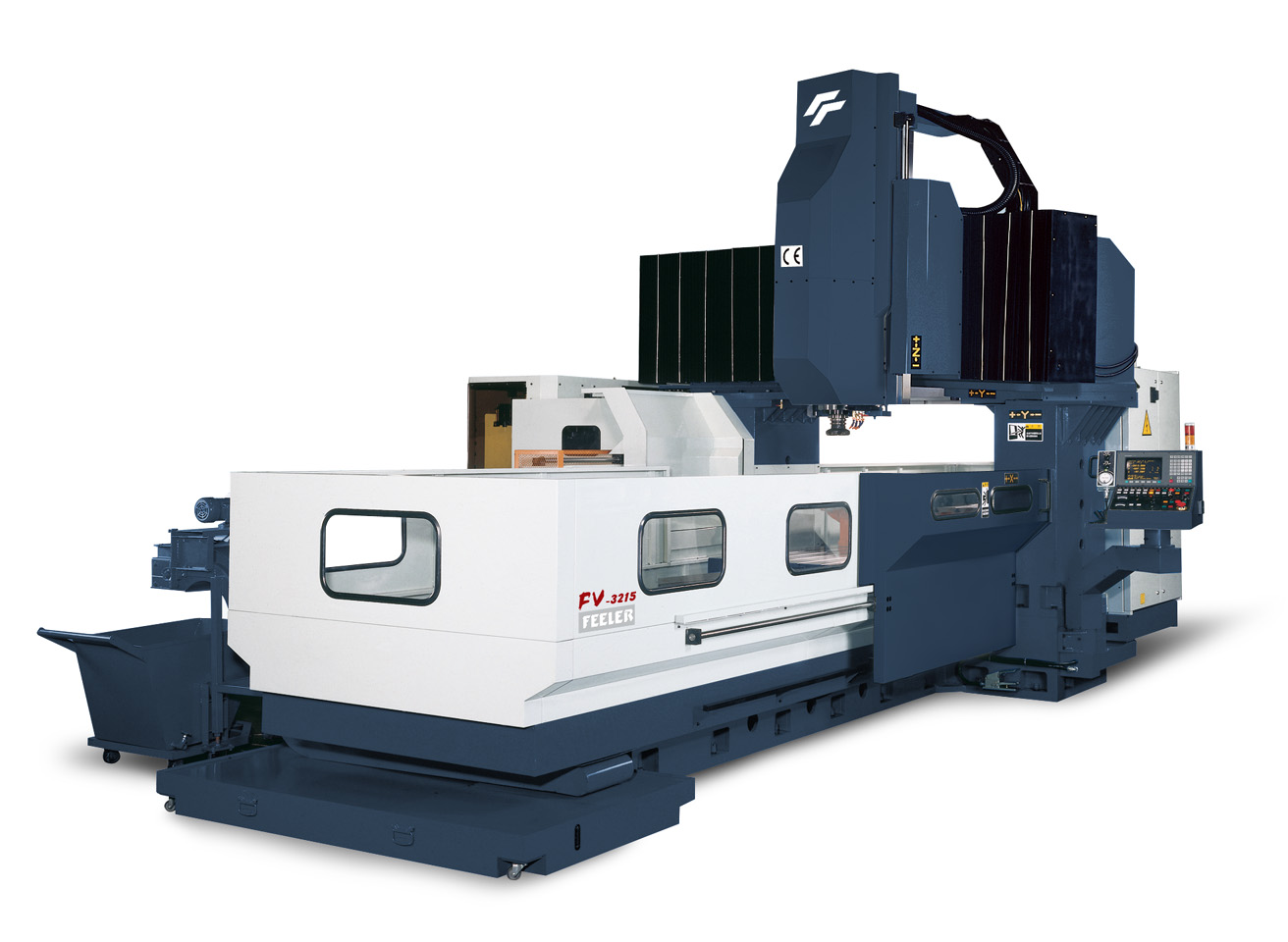

  Product Name:double column machining center



  Product Description:
double column machining center
machine center
machine center manufacturer
CNC machining center
X Axis 3,200 mm
Y Axis 1,400 mm
Z Axis 750/900/1,200 mm
Table Size 3,000 x 1,400 mm
T Slots 22 mm
Maximum Loading 7,000 mm
Between Two Columns 1,600 mm
Taper ISO NO.50 / BT-50 / CAT-50 / DIN69871 (BT-40)
Speed 20-4,000 rpm (30-6,000 rpm) (8,000 rpm) (10,000 rpm)
Motor 20/25 HP (30/35 HP)
Rapid Feedrate X/Y 12,000 mm/ min (15,000 mm/ min)
Rapid Feedrate Z 10,000 mm/ min
Cutting Feedrate 1-5,000 mm/ min
Minimum Setting 0.001 mm/ min
No. of ATC (Opt.) 20/ 24 / 32 /40 /60 pcs
Max Tool Length 350 mm
Max. Tool Weight 18 kgf (20 kgf)
Tool to Tool 8 sec
Power Required 40 KVA
Floor Space 8,300x 4,150 mm
Machine Height 4,100 / 4,450 / 4,800 mm
Machine Net Weight 20,000 (21,500) kgf
  Contact Information:
Company Name: Fair Friend Enterprise Co., Ltd.
Contact Person: Mr. Zhu
Address: No. 133, Gong 1st Road, Taichung Industrial Park, Taichung City, Taiwan.
E-Mail:
Telephone: 886-2-2763-9696
Mobile: ------------
Fax: 886-2-2768-0636
Web Site: www.feeler.com
