Jinan Jindiao Technology Co.,Ltd


  Product :

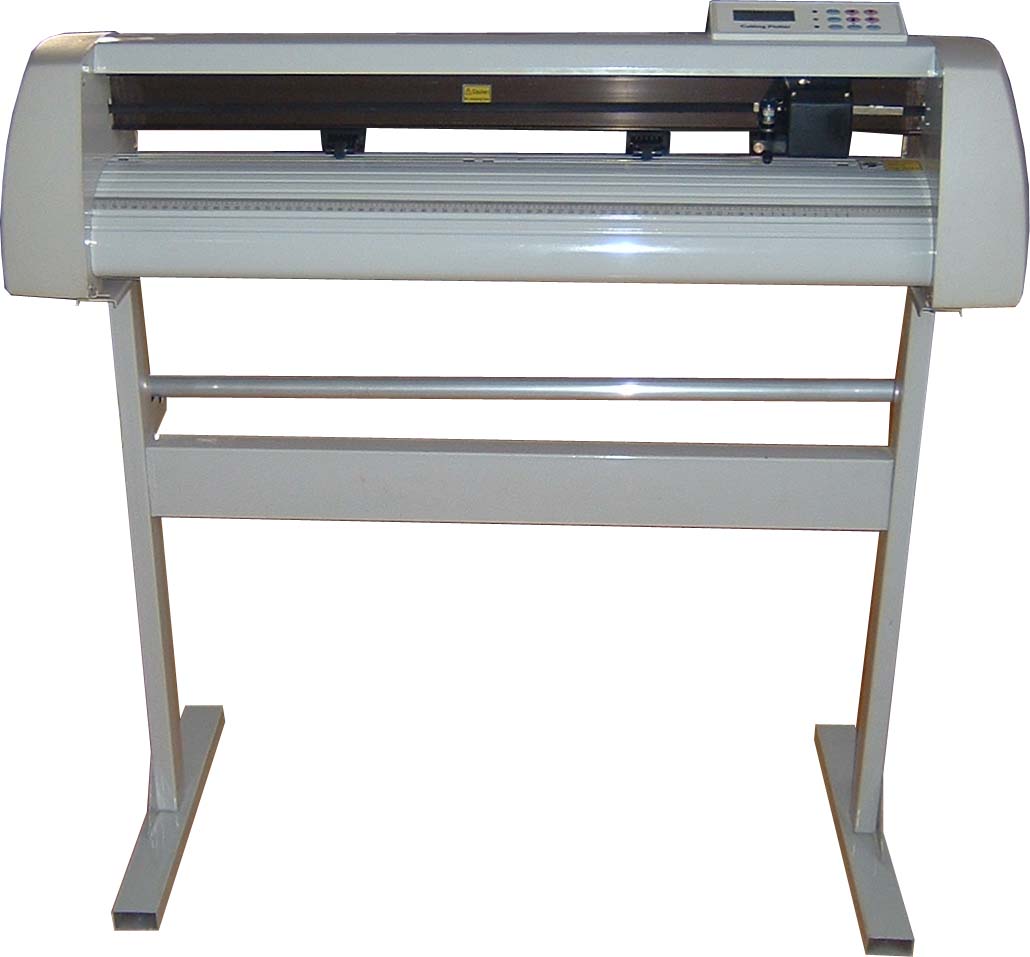

  Product Name:vinyl cutter



  Product Description:
Technical Parameters
1>.Power supply: 100-260V Switching type
2>.Power: 60-120W
3>.The max width of paper and max cutting width x length:
JD800C:795mm, 700x53000mm
JD1120C:1115mm, 1000x53000mm
JD1360C:1355mm, 1260x53000mm
4>.Cutter: Inertial rotation
5>.Pen: Ball pen
6>.Cutting speed: 25-375mm/s in 15 steps
7>.Cutter pressure: 25-400g in 16 levels
8>.Mechanical resolution: 0.0254mm/step
9>.Selectable resolution of software: 0.0254, 0.0635, 0.05mm /step
10>.Repeated accuracy: 0.127
11>.Motor: Stepping motor
12>.Interface type: RS 232 Serial interface, centronic parallel interface
13>.Bit mode: 8data, 1 odd and even, 2 stopping
14>.Baud rate: 2400, 4800,9600,19200
15>.Dimension of whole machines:
JD800C: 1000x250x230mm
JD1120C: 1320x250x230mm
JD1360C: 1560x250x230mm
16>.Language: Compatible with DM/PL drawing language
17>.Working ambient temperature : 0-35 deg C
18>.Working ambient humidity: 5-90% RH

  Contact Information:
Company Name: Jinan Jindiao Technology Co.,Ltd
Contact Person: Ivy Pan
Address: No.182 Gongyebei Rd
E-Mail:
Telephone: 86-531-88976806
Mobile: ------------
Fax: 86-531-88976807
Web Site: www.jnjindiao.com
