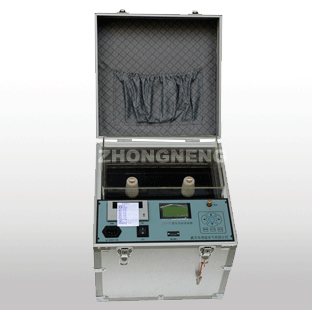

IIJ fully automatic tester is designed by IEC156 dielectric strength of insulating oil. Adopt industrial scm to control, which is applied to integrate circuit, new model I / 0 connection, particular testing and anti-jamming technology which largely improve the machine's capacity.
Main features:
1. Simple operation, automatically (can be finished just press on key)
2. Menu controlled. Input data is clear
3. Can store 99 groups of oil testing data, which is convenient to reading and print. The testing data can keep 100 years under the condition of power off.
4. System time can go on running under power off;
(The system time is just for reference which can not be the standard of timing)
5. Can upgrade software through rs232
6. High capacity of anti-jamming, high precision of testing.
7. Small volume, light, which can be operated in the open air very conveniently
Technology and parameter data
1. Power supply: AC220V , 50 HZ
2. Output voltage: 60KV, 80KV, 100KV (100KV should be special designed)
3. Capacity: 1.6KVA, 2.0KVA
4. Pressure increase speed : about 2 kva/s
5. Pressure testing speed: 3%
6. Dielectric strength sensitivity : <2KV
7. Wave form distortion : <3%
8. Time of dielectric strength: <10ms
9. Polar distance: 2.5mm
10. Weight: 40kgs
