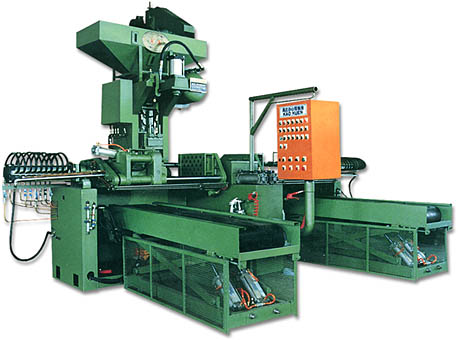

shell moulding & core blowing machine
Model KKD-430 KKD-530 KKD-440 KKD-540 KKD-550
Moulding size
(LxHxW) 450x300x250mm 500x300x250mm 450x400x250mm 500x400x250mm 550x400x300mm
Shell moulding size
(LxHxW) 370x280x200mm 420x280x200mm 370x380x200mm 420x380x200mm 470x380x250mm
Operating style Individual operating-single auto cycle operating-progressive auto operating
Forming capacity 20-90seconds/cycle
Heating style By LPG or electric heating
Max. blowing volume 20kg 25kg 25kg 25kg 30kg
Sand storage volume 250kg 300kg 300kg 300kg 450kg
Operating pressure 5-6kg/cm2
Sand blowing pressure 1-4kg/cm2
Voltage AC-220V/380V/50/60HZD3P
Cooling water capacity 2-4m3/hr
Air piping orifice 3/4" 3/4" 3/4" 3/4" 1"
Machine weight 3950kg 4000kg 4200kg 4300kg 4500kg
Machine size
(LxHxW) 2100x5000x3050
mm 2100x5000x3050
mm 2100x5000x3100
mm 2100x5000x3100
mm 2300x5000x3200 |
|
|
|
|
| |
|
|
| |
| |
 |
|
