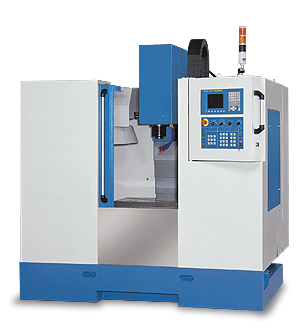

ITEM Unit RIC - 600
TABLE
Size: length x width mm 700 x 450
Working area mm 600 x 450
T - slots mm 16 x 4 x 95
Max. table load Kg 250
TRAVEL
X - axis mm 610
Y - axis mm 460
Z - axis mm 500
Spindle nose to table surface mm 150 ~ 650
Spindle center to column surface mm 460
Ball screw (dia. / pitch axes X, Y, Z) mm 32 / 10 pitch, Double nuts
SPINDLE
Taper BT 40
Speed - transmission rpm. 8000
FEEDRATE
Max. feedrate Depending on controller
Rapid traverse rates X - Y - Z M / min 30 / 30 / 30
Distance of table surface from the ground mm 820
TOOL MAGAZINE
Disc - type Armless 16 tools (std.), Arm 16 tools (opt.)
Tool storage capacity tools Armless 16 tools (std.), Arm 16 tools (opt.)
Tool selection Bi - directional & min. path
Max. tool dia. x length mm Armless: 80 x 200
Max. tool weight Kg 7
Air power required 6 Kgs / cm2
Tool shank BT40
MOTOR
Motor KW 5.5 / 7.5
Coolant pump HP 1/4
Tool to tool sec. 7
DIMENSION
Machine weight - net Kgs 3300
Machine weight - gross Kgs 3500
Packing dimension cm 226 x 226 x 246
|
|
|
|
|
| |
|
|
| |
| |
 |
|
