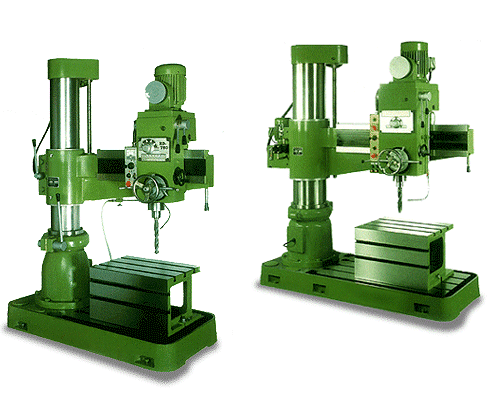

Richyoung Machine Tool Co., Ltd.       Product :     Product Name:drilling machines           Product Description: Spindle stroke 200 (7-7/8") 200 (7-1/8") 250 (9-7/8") 250 (9-7/8") Size of morse taper MT #4 MT #4 MT #4 MT #4 Spindle speed 88 - 1500 (6) 88 - 1500 (6) 44 - 1500 (12) 44 - 1500 (12) Spindle feeds (0.05, 0.09, 0.15) 0.002", 0.0035", 0.006" (0.05, 0.09, 0.15) 0.002", 0.0035", 0.006" (0.05, 0.09, 0.15) 0.002", 0.0035", 0.006" (0.05, 0.09, 0.15) 0.002", 0.0035", 0.006" Column diameter 210 (8-1/4") 210 (8-1/4") 300 (11-7/8") 300 (11-7/8") Max. distance, column surface spindle center 775 (30-1/2") 920 (36-3/16") 1145 (45") 1245 (50") Min. distance, column surface spindle center 290 (11-3/8") 290 (11-3/8") 330 (13") 330 (13") Horizontal travel of headstock 485 (19-1/8") 630 (24-13/16") 815 (32") 917 (37") Max. distance, base to spindle 1100 (43-3/4") 1100 (43-3/4") 1230 (48-1/2") 1230 (48-1/2") Min. distance, base to spindle 282 (11-3/32") 282 (11-3/32") 540 (21-1/4") 540 (21-1/4") Overall height of column 1850 (72-7/8") 1850 (72-7/8") 2160 (85") 2160 (85") Machine height from floor 2175 (85-11/16") 2175 (85-11/16") 2585 (101-3/4") 2585 (101-3/4") Dimensions of base 1280 x 640 x 150 1435 x 640 x 150 1800 x 800 x 170 1800 x 800 x 170 Effective area of table 550 x 405 x 315 550 x 405 x 315 650 x 500 x 410 650 x 500 x 410 Spindle drive motor (HP) 2 HP 2 HP 3 HP (4 P x 8 P) 3 HP (4 P x 8 P) Arm elevation motor (HP) 1 HP 1 HP 2 HP 2 HP Coolant pump (HP) 1/8 HP 1/8 HP 1/8 HP 1/8 HP Oil motor (HP) - - - - Net weight - approx (Kg) 1100 Kgs 1170 Kgs 2000 Kgs 2050 Kgs Gross weight - approx (Kg) 1200 Kgs 1270 Kgs 2100 Kgs 2150 Kgs Measurement (L x W x H) 143 x 820 x 2060 1580 x 820 x 2060 2010 x 1030 x 2230 2290 x 1100 x 2230   Contact Information: Company Name: Richyoung Machine Tool Co., Ltd. Contact Person: ---------- Address: 11F-1, 177, Wu-Chuan S. Rd., Taichung 402, Taiwan. E-Mail: Telephone: 886-4-22293260 Mobile: ------------ Fax: 886-4-22293257 Web Site: www.richyoung.com.tw
