The machine is designed for small-sized work pieces, including toys, containers and ornaments made of PE, PP, Nylon and Acrylics. And, large-sized but thin work piece is also suitable for the machine, especially the one in 600 m/m x 100 m/m with large volume of production and fair welding surface. With experiences over 10 years, we have gained array of market experiences and won lot of praises regarding the machine.
Features:
1. The sliding templates on each side connect to four chromate treated and steel sliding rod enables linear welding and avoids mold shift.
2. It can do heat melting and deburr at the same that save the labor force for deburring.
3. The driven force by oil pressure makes welding more solid.
4. It is assembled with parts processed by CNC machine and both the horizontal and vertical can meet demands of high precision.
5. PLC controlling system.

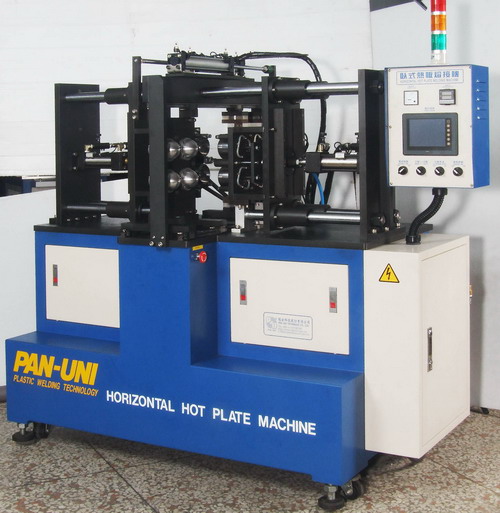

Type : PU-MH1200L
Dimension : Main machine: L1680 x W880 x H1600 m/m
Oil tank : L670 x W420 x H650 m/m
Weight : 650KG
Power : 6KW. 220 / 380V x 3 . 50 / 60HZ
Air Pressure : 7KG/ cm2
Capacity : 24-30 sec / 1 Mold ( 1~6 pcs / 1 mold )
Application : Toy Balls, Containers for Aromatic Agent and Carburetor Made of PE, PP, Nylon, Acrylics, ABS and Acetal.
|
|
|
|
|
| |
|
|
| |
| |
 |
|
