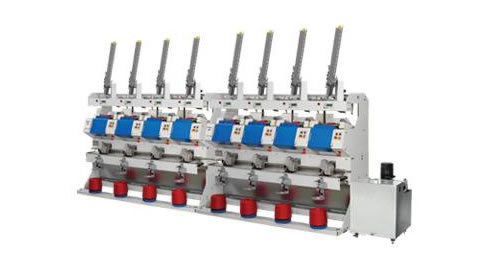

| Taining Machine Industries Co., Ltd. |
|
| |
| |
|
| |
| |
 |
|
Specifications:
Circulating oiling tank. (With vacuum pump, filter.)
Hot circulating oiling tank. (With vacuum pump, filter, heater & temperature controller.)
Features:
Powerful Multi-function
Auto bobbin feeder and doffing system
Doffer automatic stops when bobbins run out.
Quick action, accurate timing, and durable.
12 second doffing time.
Individual spindle control
LCD display.
Yarn length measured by computer, not rollers or wheels. Accuracy within 0.5%.
Yarn speed adjustable from 300 to 1,600 meters/pr minute.
Uniform thread lubrication due to constant yarn speed.
The oiling roller speed is adjustable and proportional to the yarn speed.
250 sets of memory functions with production quantity preset.
Drum thread-guidance system
High speed, low noise drum.
Drum with special hardened polish treatment, smooth & wear resist.
Circulating oil system
Centralized oil tank feeds 24 spindles.
Spindle independent oil filter and filler for consistent trouble-free operation.
Easy to clean, detachable filters.
Oversized oil fenders and troughs to minimize oil loss and cleaning.
Electro-magnetic tensioner
Automatic tension release throughout the cycle for consistent winding tension. |
|
|
|
|
| |
|
|
| |
| |
 |
|
