Specifications:
For further details, please click large photo.

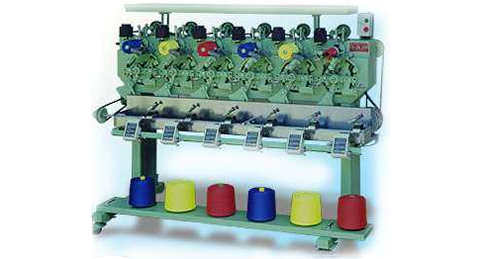

Features:
Breaking through tradition & possessing various improvement.
Increasing the speed & lowering noise.
Simple operation & easy maintenance.
The density adjustment is dexterous, it will make the shape of product presents fine & exquisite.
Suitable for nylon, cotton, s. polyester, and PP/PE yarns.
Optional: Micro computer yarn meter.
Major Structure
Cam case C is the core of the machine, on account of the improvement, it makes machine's durability heighten manifold.
It does not need to add liquid lubricant into winding shaft structure B & transmission case D. It won't produce pollution and will save the time & cost of maintenance.
The whole effects of the newest major structure
The speed increases from 1,200rpm to 1,400rpm and the quantity of production increases 16%.
Although the speed of machine has been heighten, the noise has been reduced. Besides, saving electricity and increasing the durability. The product will be more fine & exquisite and the operation will be easier.
A. New Auxiliary Winding Structure-For Bobbin A'H Use Only
Using the newest design, adjustable rolling wheel a, the machine not only has the function of making flat but also possesses the feature of positively sending thread ensure to meet the nice looking appearance of shapes.
New design of instructing hook b is made of engineering plastics and it can lower the using damage. In addition, it uses a round axis track to round axis track to be appropriate each kind of oblique degree bobbin.
B. The Structure of the Winding Shaft
It has major-shaf a tube a is made of a full set that is precise and easily assembled. In addition, with 3 sets of balls bearing b with oil seal it is suitable for high-speed operation and dose not need adding oil.
C. The New Structure of the Cam Cast
It is designed of double-track. Driving block a is made of engineering plastics, it is durable and has impact loading. It is not easy to break with enlarging the size of rolling shaft b
The cam cast c is made of FC2, is not easy to wear. It using cen trifugal circle d can prevent from leakage oil.
D. The Transimissing Structure .
It not only adds a coupling shaft a, able to endure the power from radial and axial & promote the stability of cam but also has durable engineering plastical gear b, able to lower noise and does not need to add liquid lubricant during a long period of operation.
Transimissing gear shaft has non-adding oil balls bearing d at its two sides and a dismantling protecting cover c, able to prevent from dust; safe and easy to inspect & maintain.
E. New Auto-Regulating Oiling Device |
|
|
|
|
| |
|
|
| |
| |
 |
|
