Youji Machine Industrial Company Limited

Product :

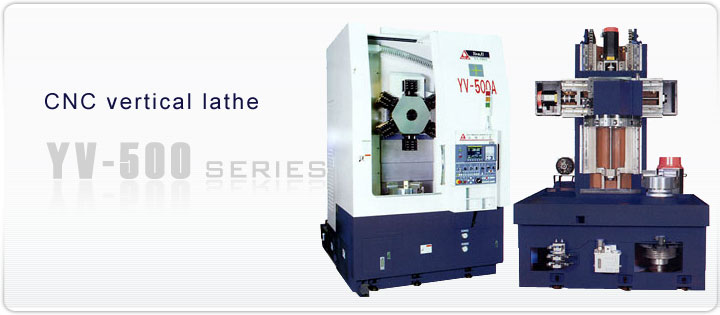

	Product Name:CNC vertical lathe

Product Description:

X-axis and Z-axis
X-axis travel mm -50;+430 -50;+430 -50;+430 -50;+430 -100;+350 -100;+350
Z-axis travel mm 600 600 600 600 650 650
X-axis rapid travel m/min 12 12 12 12 12 12
Z-axis rapid travel m/min 20 20 20 20 20 20
Motor
Spindle motor kw £\P40 18.5/22 £\P40 18.5/22 £\P40 18.5/22 £\P40 18.5/22 £\P40 18.5/22 £\P40
18.5/22
X-axis servo motor kw 3 3 3 3 3 3
Z-axis servo motor kw 4 4 4 4 4 4
Hydraulic motor kw 2.2 2.2 2.2 2.2 2.2 2.2
Coolant motor kw 0.5+1 0.5+1 0.5+1 0.5+1 0.5+1 0.5+1
Motor for drilling & tapping kw N/A 3.7/5.5 N/A 3.7/5.5 NA 3.7/5.5
Measurement
LxW mm 2950x1800 2950x1800 2950x1800 2950x1800 3380x2330 3380x2330
Machine height mm 3385 3385 3330 3330 3385 3385
Net weight kg 12000 12000 12000 12500 12500 13000
Total power consumption KVA 45 50 45 55 50 55
