Dah-Lian Machine

Product :

	Product Name:rivet making machine

Product Description:

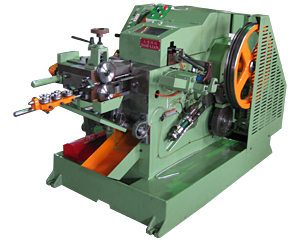

TUBULAR RIVET MAKING MACHINE
Model Blank Diameter Blank Length Stroke Speed (pcs/min) Die Dia. Cut-off Punch Die (1st & 2nd) Machine dimension(LxWxH) Weight(kg)
DBH-4 3.2-4.0mm 6.0-19.0mm 60mm 120-150 28mm 16mm 25mm 150x100x120cm 1000kgs
DBH-5 5mm 6.0-25.4mm 80mm 100-120 34.5mm 19mm 31mm 200x110x130cm 1200kgs
DBH-6 6mm 15.0-25.4mm 112mm 100-120 34.5mm 19mm 31mm 215x120x130cm 1600kgs

SEMI TUBULAR RIVET MAKING MACHINE
Model Blank Diameter Blank Length Stroke Speed (pcs/min) Die Dia. Cut-off Punch Die (1st & 2nd) Machine dimension(LxWxH) Weight(kg)
STR-4 1.5-4.0mm 35mm 10mm 100-150 30mm 17mm 25mm 160x100x120cm 1100
STR-5 2.0-5.0mm 65mm 10mm 80-120 34.5mm 19mm 31mm 190x110x118cm 1450
STR-6 2.5-6.0mm 80mm 12mm 70-100 42mm 22mm 36mm 220x125x130cm 2000

Contact Information:

Company Name:	Dah-Lian Machine
Contact Person:	Jean Lin
Address:	No.1860, Chung Yang Rd., Sec.2, Chu Tang Hsiang, Changhua Hsien
E-Mail:
Telephone:	886-4-8976031
Mobile:	------------
Fax:	886-4-8974949
Web Site:	/myoffice-commodify.asp
