Excetek Technologies Co., Ltd.


  Product :

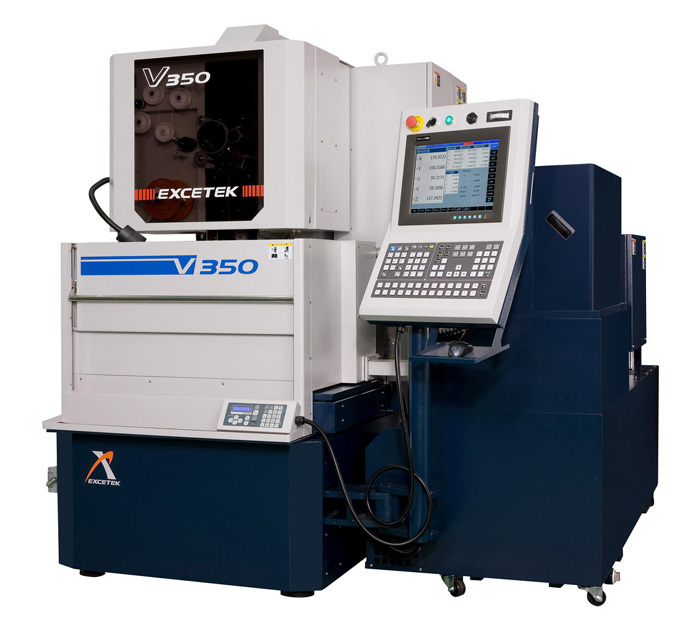

  Product Name:wire cut EDM



  Product Description:
SPECIFICATIONS
Submerged
Flushing

Model
V350
V35

Max. Work piece Size
700x500x215mm
(27.6"x19.7"x8.5")
800x600x215mm
(31.5"x23.6"x8.5")

Max. Work piece Weight
450kg
(992 lb)
500kg
(1102 lb)

Table Travel of XY
350x250mm
(13.8"x9.8")
350x250mm
(13.8"x9.8")

U&V Axis Travel
80x80mm
(3.1"x3.1")
80x80mm
(3.1"x3.1")

Z Axis Travel
220mm
(8.7")

Wire Diameter
0.15~0.3mm

Number of axes controlled
5 Axis AC Servo Motor

Maximum Taper Angle
¡Ó 26¢X/ 100mm
(Wide diamond guide and nozzle)

Machine Dimensions
2050x2050x1980mm
(80.7"x80.7"x78.0")
2050x2050x1980mm
(80.7"x80.7"x78.0")

Machine Weight
2700kg
(5950 lb)
2500kg
(5510 lb)

Tank Capacity
600L
300L

Paper Filter
2/pcs
2/pcs

  Contact Information:
Company Name: Excetek Technologies Co., Ltd.
Contact Person: Jui Cheng Chang
Address: No.5, 36th Road, Taichung Industrial Park, Taichung 407, Taiwan.
E-Mail:
Telephone: 886-4-23502788
Mobile: ------------
Fax: 886-4-23509911
Web Site: www.excetek.com.tw
