Sencar Machinery Co., Ltd.


  Product :

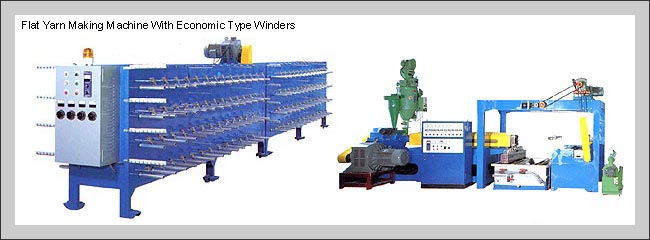

  Product Name:flat yarn making machine with economic type winders



  Product Description:
L/D Ratio 28:1 28:1
Driving Motor (vs) 50HP 50HP
Heating Capacity 45KW 45KW
Extrusion Capacity (KG/HR) 80-110 100-120
Auto Loader & Hopper Dryer 1 SET 1 SET
T-Die Die Length 1100MM 1300 MM
Heating Zone 5 Zone 5 Zone
Heating Capacity 14 KW 15 KW
Quench Unit Stainless Stell Bath Water Circulation Water Circulation
Slitting Unit Slitting Method Razor Blade Razor Blade
Slitting Width 5-8 MM (Replaceable) 5-8 MM (Replaceable)
Take-Up Unit Take-Up Rollers 2PCS 2PCS
Driving Motor (vs) 2HP 2HP
Driving Speed (M/MIN.) 10-25 10-25
Stretching Plate Stretching Method Hot Stainless Plate Hot Stainless Plate
Heating Capacity 18 KW 24 KW
Stretching Rollers Stretching Rollers 7 PCS 7 PCS
Wast Yarn Collect Roller 1. PC 1 PC.
Driving Motor (VS) 10 HP 10 HP
Line Speed (M/MIN.) 60-120 60-120
Annealing Oven Annealing Method NIL NIL
Heating Capacity NIL NIL
Take-Off Unit Take-Off Rollers NIL NIL
Driving Motor (VS) NIL NIL
Line Speed (M/MIN.) NIL NIL
Take-Up Winders Number of Spindle 200 PCS 240 PCS
Torque Motor 1/16 HP 1/16 HP
Winding System Center Motor Driving System with Main Tension Regulator
Length of Traverse 203 MM (8")
  Contact Information:
Company Name: Sencar Machinery Co., Ltd.
Contact Person: ----------
Address: 12-1, No.7, Tung Feng St., Taipei 106, Taiwan
E-Mail:
Telephone: 886-2-27016312
Mobile: ------------
Fax: 886-2-27016797
Web Site: www.sencar.com.tw
