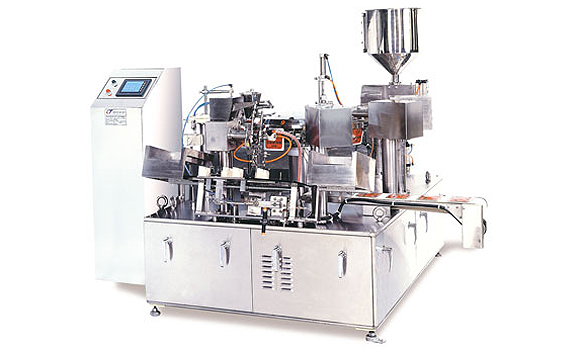

RPA-40A
CharacteristicĄG
Model RPA-40A is ideal for filling with liquids, paste, hot products and products containing solids.
The main applications are meat products; pre-coked meals; snack foods; nuts; Pet foods; meat sauce, fruit juice; soups (including thick soups) ..etc, PLC Human-machine interface, Reduce the basic workers training time by the production parameter adjustable easily, also operation smoothly. The filler is very simple and convenient to strip down and clean up. Bag size can be adjusted with a simple control operation, full set of machine is designed base on the Cam mechanism structure to keeping operation smooth; accurately and maintenance easily.
SpecificationĄG
Capacity : 30 ~ 40 bags (per minute, depending on nature of products)
Filling volume : 30 ~ 230g
Power consumption :
1. Heater - AC220V 400W X 4 sets;
2. Motor- AC220V, 3 phases 0.75 KW,
3. Vacuum-Pump AC220V, 3 Phases 0.75 KW,
4. Product discharge conveyor 0.06KW
Control panel : PLC Human-machine interface
Air consumption : 0.6mpa 300nl /min
Weight : approx. 1450 Kg
Dimensions : 2280mm (L) X 2155mm (W) X 1700mm (H)
The machine exclude Air Compressor to provide! |
|
|
|
|
| |
|
|
| |
| |
 |
|
