Hsing Kang Machinery Works Co., Ltd.

Product :

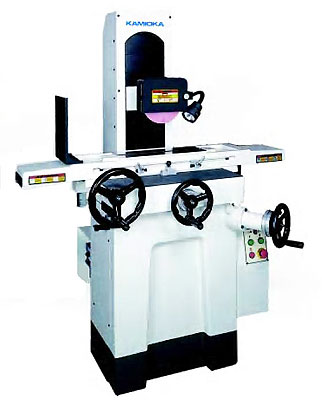

	Product Name:precision surface grinder

Product Description:

Capacity
Table Sizes 150 ¡Ñ 460 mm
Longitudinal Travel 480 mm
Cross Travel 170 mm
Spindle Center to Table Surface 460 mm
Magnetic Chuck Size 150 ¡Ñ 450
Longitudinal Feed
Manual Travel 530 mm
Automatic Travel 510 mm
Table Traverse Rate 5~25 M/min
Cross Feed
Manunal Travel 180 mm
Automatic Travel 170 mm
Automatic Feed (variable) 0.5~10 mm
Hand Wheel Per Revolution 5 mm
Hand Wheel Per Graduation 0.02 mm
Micrometric Adjustment Per Revolution 0.2 / 0.001 mm
Vertical Feed
Hand Wheel Per Revolution 1 mm
Hand Wheel Per Graduation 0.005 mm
Micrometric Adjustment Per Revolution 0.2 / 0.001 mm
Grinding Wheel
Grinding Wheel Sizes 203 ¡Ñ 12~19 ¡Ñ 31.75 mm
Spindle Speed 3,450 (60hz) / 2,850 (50hz)
Motor
Spindle Motor 2 HP
Hydraulic Motor 1 HP
Cross Feed Drive 40 W
Vertical Feed Drive 80 W
Weight
Net Weight (Approx.) 840 kg
Gross Weight (Approx.) 940 kg
Packing Dimensions
( L¡ÑW¡ÑH) 1,480 ¡Ñ 1,120 ¡Ñ 1,950 mm
Total Rated Horsepower
Total Rated Horsepower 5.0 HP
