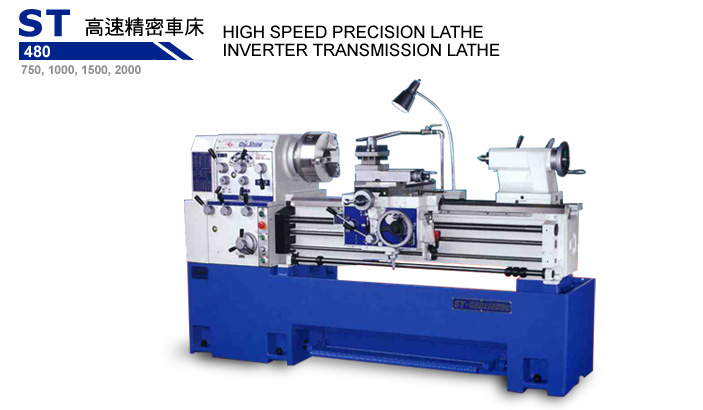

Pin Shin Machinery Co., Ltd.       Product :     Product Name:High speed precision lathe           Product Description: MODEL ST430 ST480 SPECIFICATIONS ST750, ST1000, ST1500, ST2000 CAPACITY Swing over bed 430mm 480mm Swing over cross slide 225mm 275mm Center distance 760mm, 1000mm, 1500mm, 2000mm Swing over gap 640mm 690mm Bed width 300mm HEADSTOCK Spindle nose ASA A2-6 / D1-6 Spindle bore 58mm Taper of spindle bore MT6 Spindle speed 20 ~ 2000rpm (12 steps) FEEDS-THREAD Inch threads range 4 ~ 56 / TPI Metric threads range P0.5 ~ P7 Longitudinal feed range 0.05 ~ 0.8mm Cross feed range 0.02 ~ 0.36mm Leadscrew diameter 35mm Leadscrew pitch 4 / TPI or 6mm TOOL SLIDE Compound rest travel 125mm Cross slide travel 250mm TAILSTOCK Taper of tail center MT4 Tail spindle travel 150mm Tail spindle diameter 68mm MOTOR Main drive motor 5HP / 7.5HP (opt.) Coolant pump 1/8HP BED Machine dimensions (cm) L:190, 216, 267, 320 W:81 H:125 Packing dimensions (cm) L:198, 228, 279, 337 W:95 H:162 Net weight (kgs) 1720, 1800, 2075, 2380kgs Net weight (kgs) 1820, 1900, 2225, 2530kgs   Contact Information: Company Name: Pin Shin Machinery Co., Ltd. Contact Person: Huang Ling Ling Address: No.16, Fu Ping Rd., Taiping City Tichung Hsien, Taiwan, R.O.C. E-Mail: Telephone: 886-4-22777212 Mobile: ------------ Fax: 886-4-22777313 Web Site: www.chushing.com.tw
