Function:Insulator Cutting Machine

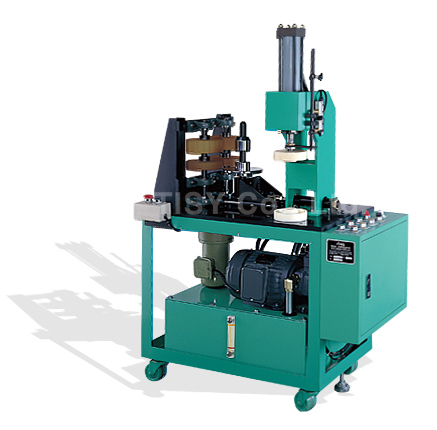

The machine is suitable for forming up the small to medium size stator coil, the operator puts the
coil on left side roller to form up inner side of coil, then put the stator on right side forming mould to
finally form up height, inner and outer side of coil to ensure the end product to meet the required
specification.
Specifications:
¡P Operation: Pneumatic & Motor
¡P Motor: 3phase, 0.75kw
¡P Dimension: 1000(L) x 600(W) x 1500(H)mm
¡P Weight: 220kgs
Features:
¡P Solid structure and compact design.
¡P High speed, high reliability, quality output and perfect function.
¡P Easy to adjust while changing stack height of stator.
|
|
|
|
|
| |
|
|
| |
| |
 |
|
