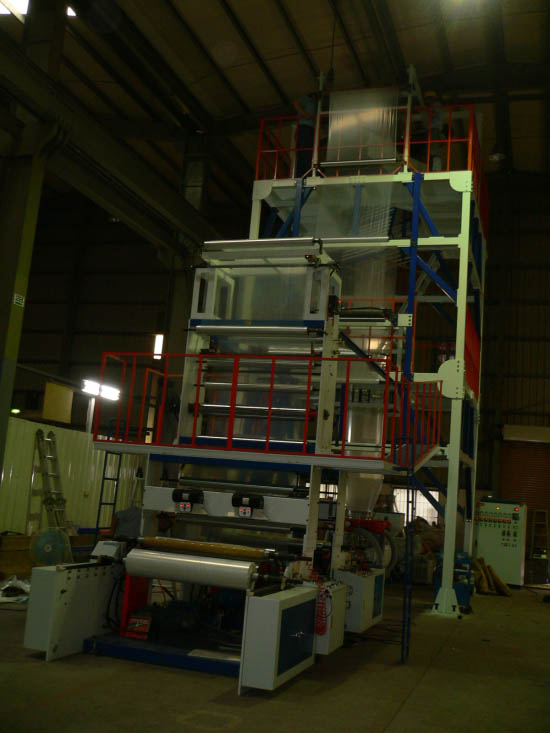

SPECIFICATION :
MODEL GF-L55ES GF-L65ES GF-L85ES
FEATURE MATERIAL TO BE USED LD/LLDPE ( Low & Linear Low Density Polyethlene )
MAX. FILM WIDTH 1150mm 1550mm 2200mm
FILM THICKNESS Standard 0.015 - 0.2 mm, possible to produce thicker gauge
MAX. EXTRUSION OUTPUT 120 KG/HR 180 KG/HR 240 KG/HR
EXTRUDER SCREW DIAMETER 55 mm 65 mm 85 mm
SCREW L/D RATIO 30 : 1
DRIVIVING MOTOR 50 HP 75 HP 100 HP
BLOWN FILM DIES 250 mm 350 mm 500 mm
CONTROL
PANEL TYPE INDEPENDENT TYPE SWITCH BOARD
TEMPERATURE CONTROL 6 ZONES 7 ZONES 8 ZONES
COOLING
UNIT TYPE EXTERNAL AIR COOLING BY DUALLIP AIR RING
AIR BLOWER 5 HP 7.5 HP 10 HP
TAKE-UP
UNIT TYPE TOWER FIXED TYPE
ROLLER WIDTH 1200 mm 1600 mm 2300 mm
TAKE-UP SPEED Max. 60 M/Min
BUBBLE GUIDE 1 SET, CAGE TYPE WITH WOOD or UPE RINGS
STEADY PLATE 1 SET, MADE OF ALUMINUM ROLLERS
GUIDE UNIT 1 SET, DRIVEN BY TORQUE MOTOR
WINDING
UNIT TYPE SINGLE STATION, SURFACE FRICTION TYPE
FILM CUTTING BY RODLESS AIR CYLINDER KNIFE
BOBBIN CHANGE SEMI-AUTO TYPE, BY PNEUMATIC SYSTEM
EGGECTIVE WIDTH 1150 mm 1550 mm 2300 mm
WOUND-UP DIAMETER MAX. 1000 mm
WINDING MOTOR 2 HP 2 HP 3 HP
|
|
|
|
|
| |
|
|
| |
| |
 |
|
