Blue Steel Machinery Co., Ltd.


  Product :

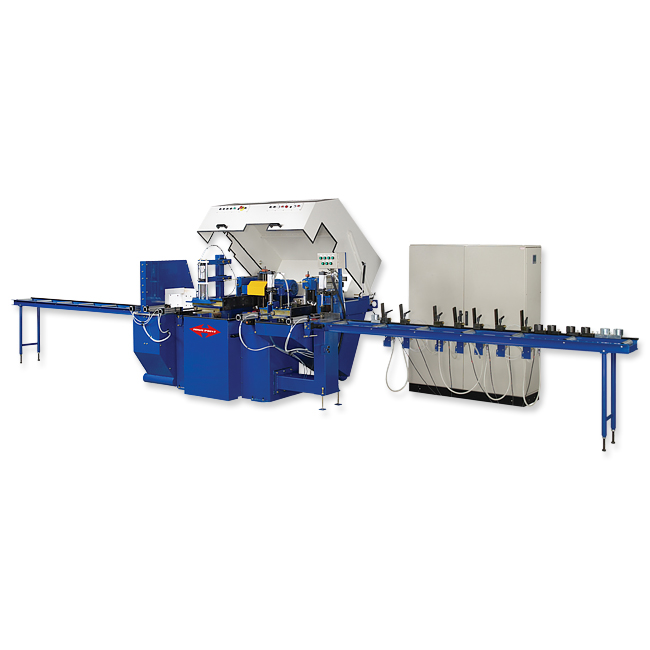

  Product Name:log home notching machine



  Product Description:
Specification:
Cutting site
Drive power engine : 2,2 (5,5)kw
The external diameter saws : 400 (450) (600) (750)mm
The frequency of rotation : 2900rpm
The maximum height of cut : 145 (170) (245)mm
The diameter of the holes aspirator : 100mm


The main milling unit
The number of vertical spindles : 2
The number of horizontal spindles : 2
The diameter of spindles : 40mm
Drive power engines of vertical spindles : 2 x 4 kw
Drive power engines horizontal spindles : 2 x 4 kw
The maximum number of tools at the spindle : 4
The external diameter of tool : 180 230 270(330)
Rotational speed : 2850rpm
The diameter of the holes aspirator : 200mm


Drilling site
Drive power engine : 1,8kw
The diameter of tool : 12-35mm
The length of the tool : 220-320mm
Rotational speed : 1450rpm
The diameter of the holes aspirator : 150mm


Notch site
Drive power engine : 4kw
Spindle speed : 2900rpm
The maximum diameter of tool : 230mm
The diameter of the spindle : 30mm
The diameter of the holes aspirator : 150mm
Weight machine : 1200-1700
The number of installed tools : 1(2)
  Contact Information:
Company Name: Blue Steel Machinery Co., Ltd.
Contact Person: Haley Huang
Address: 86-10,Shen Chlng Road,Chlng Shul, Taiwan.
E-Mail:
Telephone: 886-4-26201608
Mobile: ------------
Fax: 886-4-26200289
Web Site: www.highpointtools.com
