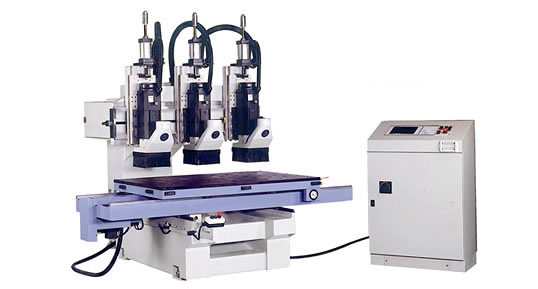

Model NR-231L/3 Dimension of working table mm 900x1500 X-axis travel mm 1500 Y-axis travel mm 900 Pueumatic movement of head mm 120 Vertical adjustment of table Vertical adjustment of head mm 75 Spindle speed rpm 1200~18000 Spindle motor hp 7.5 Max.positioning speed m/min 36 Overall dimensions mm 2310x2305x1697 Packing dimensions mm 2450x2240x1950 Net weight kg 1800
Contact Information:
Company Name:
Woodwise Technology Co.,Ltd.
Contact Person:
Jhang Mu Shuei
Address:
No.8,Chiu She Rd., Hou Li Hsiang, Taichung Hsien, Taiwan
