Kuen Jeng Machinery Co., Ltd.

Product :

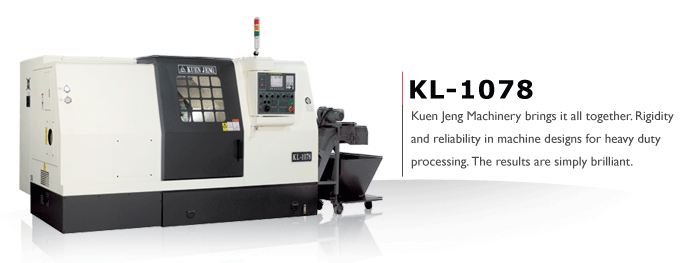

	Product Name:CNC turning lathe

Product Description:

Model KL-1078
Spindle Spindle Nose A2-8
Spindle Center Height to Floor 960mm
Spindle Center Dist. to Front Door 430mm
Draw Bar Clamping Hydraulic
Machanical Accuracy X/Z Axis Positioning (Full Travel) ¡Ó0.005mm
X/Z Axis Repeatability ¡Ó0.003mm
FANUC Motors Spindle Motor 15/18.5 kW (20.1/24.8HP)
Max. Speed 3000rpm
X Axis Servo Motor 4.0kW (5.4HP)
Z Axis Servo Motor 4.0kW (5.4HP)
Turret Turret Drive Hydraulic Motor
Number of Stations (Standard) 12T
Square Shank Size 25mm
Milling Tool Base Size 40mm
Index Time Next Station (T-T) 0.32 sec.
Fully Programmable Tailstock Morse Taper Center MT NO.5
Tailstock Travel 615mm
Max. Part Length 720mm
Rapid Traverse 6m/min

Contact Information:

Company Name:	Kuen Jeng Machinery Co., Ltd.
Contact Person:	Liou Chen Siou Rong
Address:	No.6, Lane 165, Sec. 1, Tansing Rd., Tanzih Dist., Taichung City 42743, Taiwan
E-Mail:
Telephone:	886-4-2536-7350
Mobile:	------------
Fax:	886-4-2536-7405
Web Site:	www.kuen-jeng.com.tw
