Zeten Technology Co., Ltd.

Product :

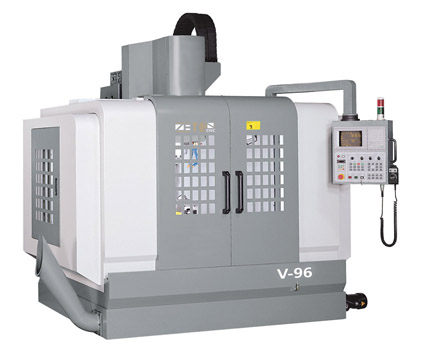

	Product Name:vertical machining center

Product Description:

V-96
Work Table Size 1000 x 550 (mm )
Table Travel (X.Y.Z Axis) 900 / 600 / 600 (mm )
T-Slot Size ( Size x No. x Pitch ) 18 x 5 x 100 (mm )
Spindle Nose to Table Top 150 ~ 750 (mm )
Spindle Center to Column Surface 625 (mm )

Table Load Capacity 800 (kg )
Spindle Taper BT-40
Spindle Speed 8000 (rpm )
Spindle Diameter o88 (mm )
Spindle Motor 7.5 (kw )
Servo Motor (X.Y.Z Axis) 2.0 / 2.0 / 2.0 (kw )
X.Y.Z Axis Rapid Feed 16 (m/min )
Tool Change Armless ( type)
Number of Tools 20
Max.Tool Diameter o100 / ( 180 ) (mm)
Max.Tool Length 250 (mm)
Max.Tool Weight 7 (kg)
Repeatability,Positioning Accuracy ¡Ó0.005 / 300 (mm)

Ball Bar Precision ¡Ó0.005 (mm)
Spindle Oil Coolant Pump 0.2 (kw)
Automatic Lubrication 0.075 (kw)
Coolant Pump 0.75 (kw)
Fluid Tank Capacity 320 (L)
Air Source 6 (kg/cm2)
Power Requirement 18 ( KVA )
Machine Net Weight 6850 (kg)
Machine Dimensions(LxWxH) 238 x 247 x 265 (cm)

Contact Information:

Company Name:	Zeten Technology Co., Ltd.
Contact Person:	Wu Dong Liang
Address:	No. 40, Alley 8, Lane 44,Sec.1 Sinren Road, Taiping City, Taichung 41143, Taiwan
E-Mail:
Telephone:	886-4-22761042
Mobile:	------------
Fax:	886-4-22765649
Web Site:	www.zeten.com.tw
